The Ultimate Guide to the Bmw Charge Pipe N55 Upgrade: Reliability Meets Performance
If you own an N55-powered BMW—whether it's a 135i, 335i, or even an M2—you've likely heard the term "charge pipe failure." It's a rite of passage for many enthusiasts, and frankly, it can be a frustrating and costly experience if you're unprepared. This isn't just a minor issue; it's a critical reliability flaw in an otherwise fantastic engine.
We're here to talk straight about why the stock Bmw Charge Pipe N55 needs immediate attention, especially if you plan on adding even the slightest performance tune. Upgrading this single component is one of the most effective ways to bulletproof your engine and ensure reliable boost delivery. Let's dive into everything you need to know, from recognizing failure signs to selecting the perfect aftermarket solution.
Why the OEM Bmw Charge Pipe N55 is a Ticking Time Bomb
The N55 engine is powerful and responsive, but BMW decided to use plastic for the factory charge pipe. This component sits between the intercooler and the throttle body, carrying pressurized, heated air (boost) from the turbocharger.
The factory design simply cannot handle the stresses of continuous heat cycling and increased pressure. Over time, the plastic becomes brittle, leading to hairline cracks and eventual catastrophic failure. If you have any tuning modifications that raise the boost beyond stock levels, this failure time frame is dramatically accelerated.
The Material Flaw: Why Plastic Fails Under Pressure
Think about the environment this pipe lives in: extreme temperatures and constant vibration. The factory plastic is designed for stock conditions, and it struggles even then. Every time you drive your car hard, the material expands and contracts.
This thermal cycling weakens the plastic, particularly around the throttle body connection points. When you introduce higher boost pressures from a tune (like a Stage 1 or Stage 2 map), the plastic simply gives up, resulting in a sudden and loud crack. It's truly a matter of "when," not "if," especially on higher-mileage vehicles.
Symptoms of a Failing Charge Pipe
Recognizing the early warning signs can save you from being stranded on the side of the road. Pay close attention to these common symptoms, as they indicate a boost leak or imminent failure:
- Loud "Pop" Sound: This is often the tell-tale sign of immediate failure. You will hear a sudden pop followed by a complete loss of power.
- Reduced Power and Limp Mode: Since the engine cannot maintain requested boost, the ECU will often put the car into a reduced power or "limp home" mode.
- Check Engine Light (CEL): You will likely see a persistent CEL with codes related to boost pressure faults (e.g., 120000, 120408, or 120308).
- Hissing Noise Under Acceleration: If the crack is small, you might hear a noticeable hiss as boost leaks out during throttle input.
Benefits of Upgrading Your N55 Charge Pipe
Upgrading the Bmw Charge Pipe N55 is not just about fixing a flaw; it's an enhancement that provides significant benefits, both in reliability and performance. This should truly be the first modification you make to any N55 vehicle, even before an intake or exhaust.
An upgraded charge pipe utilizes robust materials, typically aluminum, ensuring it can handle much higher boost levels than stock. This makes it an essential requirement for anyone running custom tunes or larger turbochargers.
Performance Gains and Reliability
While an upgraded charge pipe won't magically add 50 horsepower, it ensures you are maximizing the power you already have. By eliminating potential boost leaks, your turbocharger can deliver stable, consistent pressure exactly as requested by the ECU.
Furthermore, many aftermarket options include a crucial benefit: fittings for methanol injection. If you ever decide to pursue serious performance modifications, having these pre-tapped bungs simplifies the installation of meth kits, which significantly lowers Intake Air Temperatures (IATs) and prevents detonation.
Choosing the Right Material: Aluminum is King
When shopping for a replacement Bmw Charge Pipe N55, you will primarily encounter two material types. For the N55 application, aluminum is overwhelmingly the preferred choice due to its superior strength and heat resistance.
- Aluminum (Recommended): Extremely durable, rigid, and resistant to heat expansion. Aluminum charge pipes often include bead-rolled ends and high-quality mounting points to ensure the connections never slip under high boost.
- Silicone (Less Common for Charge Pipe): While flexible, silicone is generally better suited for intercooler couplers or intake runners, not the rigid main charge pipe that connects directly to the throttle body.
Installation and Maintenance Tips
The good news is that replacing the Bmw Charge Pipe N55 is one of the more straightforward performance modifications you can perform. It generally takes experienced enthusiasts around 1–2 hours, though beginners should allocate a bit more time for careful disassembly.
The key to a successful installation lies in attention to detail, especially regarding the C-clip and O-rings. If these aren't seated perfectly, you will have an immediate and frustrating boost leak.
DIY vs. Professional Installation
If you are mechanically inclined and have basic tools, this is an excellent DIY project. The location of the charge pipe is accessible from the top of the engine bay, simplifying the process greatly. However, if you are unsure about fiddling with critical engine components, or simply don't have the time, a professional installation is quick and typically inexpensive.
Whether you choose DIY or professional help, here are some critical steps to remember:
- Safety First: Always disconnect the battery and ensure the engine is completely cool before starting.
- O-Ring Transfer: You must carefully remove the O-ring from the stock throttle body connection and transfer it to the new pipe, or use the high-quality O-rings often provided with aftermarket kits.
- C-Clip Seating: Ensure the main C-clip that connects the pipe to the throttle body is fully seated. Wiggle the pipe gently afterward to confirm a secure connection.
- Check Sensors: Don't forget to transfer and correctly plug in the MAP sensor. This is often the cause of post-installation error codes if missed.
By taking your time and ensuring all connections are tight, you can guarantee many miles of reliable, high-boost driving without the fear of failure looming over you.
Conclusion: Invest in Your Engine's Future
The upgrade of your Bmw Charge Pipe N55 is arguably the most crucial reliability modification you can perform. While the stock component is a known weak link, the aftermarket provides robust, high-performance aluminum alternatives that eradicate the risk of boost leaks and catastrophic failure, especially when tuned.
Whether you are daily driving your N55 or pushing it hard on the track, making this small investment now will prevent much larger headaches (and towing fees) down the road. If you haven't upgraded yet, consider it your engine's essential preventative maintenance package. Enjoy the consistent boost and peace of mind!
Frequently Asked Questions (FAQ) about the N55 Charge Pipe
- What is the main advantage of an aluminum charge pipe over the stock plastic one?
- The primary advantage is structural integrity. Aluminum can withstand significantly higher boost pressures and temperature fluctuations without cracking or failing, offering rock-solid reliability that the plastic OEM part simply cannot match.
- Is the Bmw Charge Pipe N55 failure common even on stock cars?
- Yes, it is common. While tuning accelerates the failure rate due to increased boost, the stock plastic pipe is prone to brittleness and failure over time and mileage, particularly in hotter climates or vehicles with aggressive driving history.
- Do I need a new charge pipe if I only have a minor tune (e.g., a simple piggyback tuner)?
- Absolutely. Any tune, even a mild one, increases the strain on the factory plastic pipe. It is highly recommended to install an upgraded Bmw Charge Pipe N55 before or immediately after installing any performance tune to ensure stable operation.
- What other components should I replace at the same time as the charge pipe?
- Since you are already in the area, it is wise to inspect or replace the intercooler couplers and the throttle body O-rings (though most new charge pipes come with fresh O-rings). Some owners also choose to upgrade their diverter valve/blow-off valve while the charge pipe is accessible.
Bmw Charge Pipe N55
Bmw Charge Pipe N55 Wallpapers
Collection of bmw charge pipe n55 wallpapers for your desktop and mobile devices.
Stunning Bmw Charge Pipe N55 Picture Photography
Find inspiration with this unique bmw charge pipe n55 illustration, crafted to provide a fresh look for your background.
Mesmerizing Bmw Charge Pipe N55 Design Collection
Explore this high-quality bmw charge pipe n55 image, perfect for enhancing your desktop or mobile wallpaper.
Dynamic Bmw Charge Pipe N55 Wallpaper Digital Art
A captivating bmw charge pipe n55 scene that brings tranquility and beauty to any device.
Stunning Bmw Charge Pipe N55 Artwork Illustration
This gorgeous bmw charge pipe n55 photo offers a breathtaking view, making it a perfect choice for your next wallpaper.

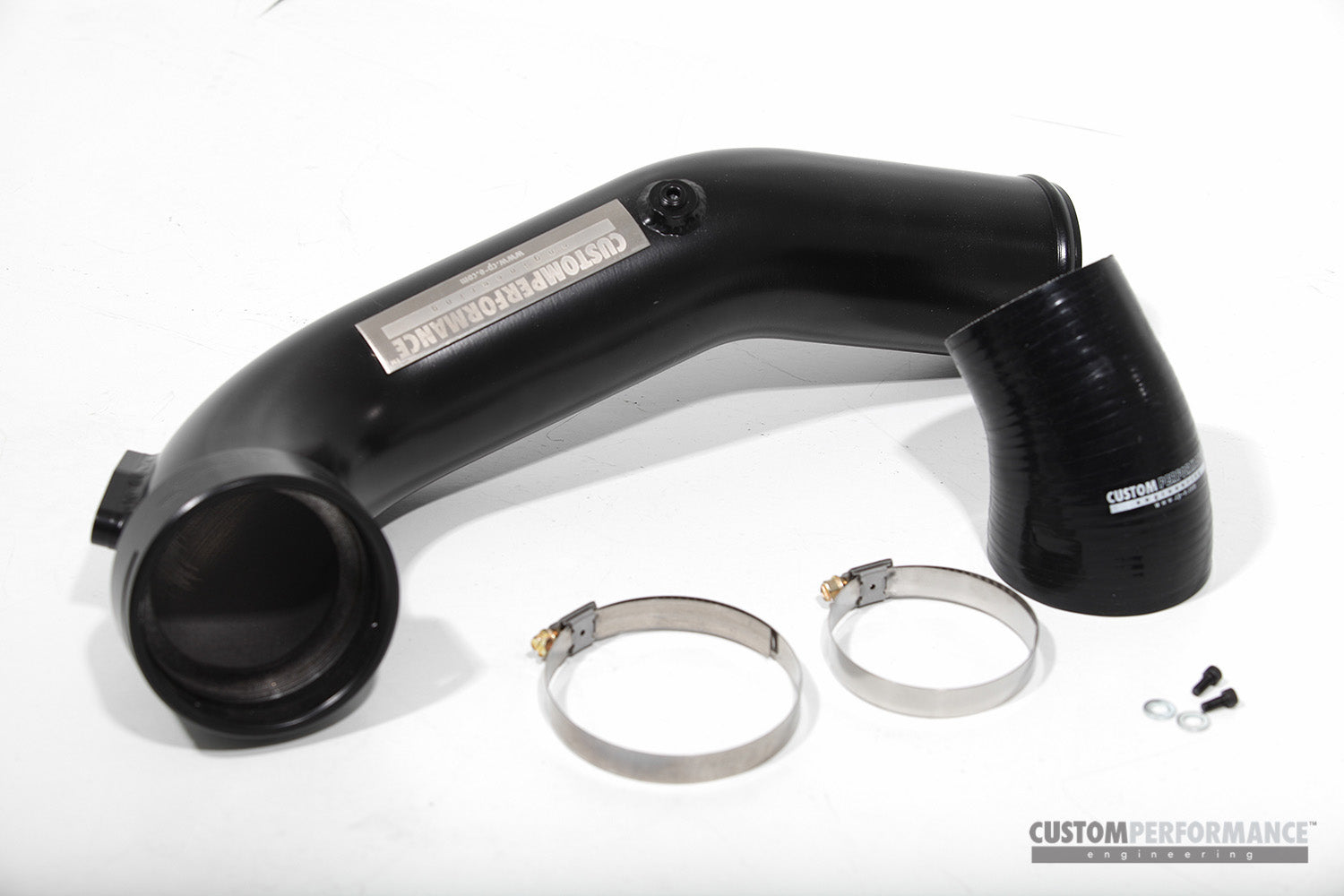

Breathtaking Bmw Charge Pipe N55 Artwork Photography
Transform your screen with this vivid bmw charge pipe n55 artwork, a true masterpiece of digital design.
Lush Bmw Charge Pipe N55 Wallpaper Nature
Immerse yourself in the stunning details of this beautiful bmw charge pipe n55 wallpaper, designed for a captivating visual experience.
Captivating Bmw Charge Pipe N55 Landscape Digital Art
Find inspiration with this unique bmw charge pipe n55 illustration, crafted to provide a fresh look for your background.
Serene Bmw Charge Pipe N55 Landscape in 4K
Experience the crisp clarity of this stunning bmw charge pipe n55 image, available in high resolution for all your screens.
Vivid Bmw Charge Pipe N55 View in 4K
Discover an amazing bmw charge pipe n55 background image, ideal for personalizing your devices with vibrant colors and intricate designs.
Detailed Bmw Charge Pipe N55 Moment for Your Screen
Discover an amazing bmw charge pipe n55 background image, ideal for personalizing your devices with vibrant colors and intricate designs.
Spectacular Bmw Charge Pipe N55 Picture Digital Art
This gorgeous bmw charge pipe n55 photo offers a breathtaking view, making it a perfect choice for your next wallpaper.

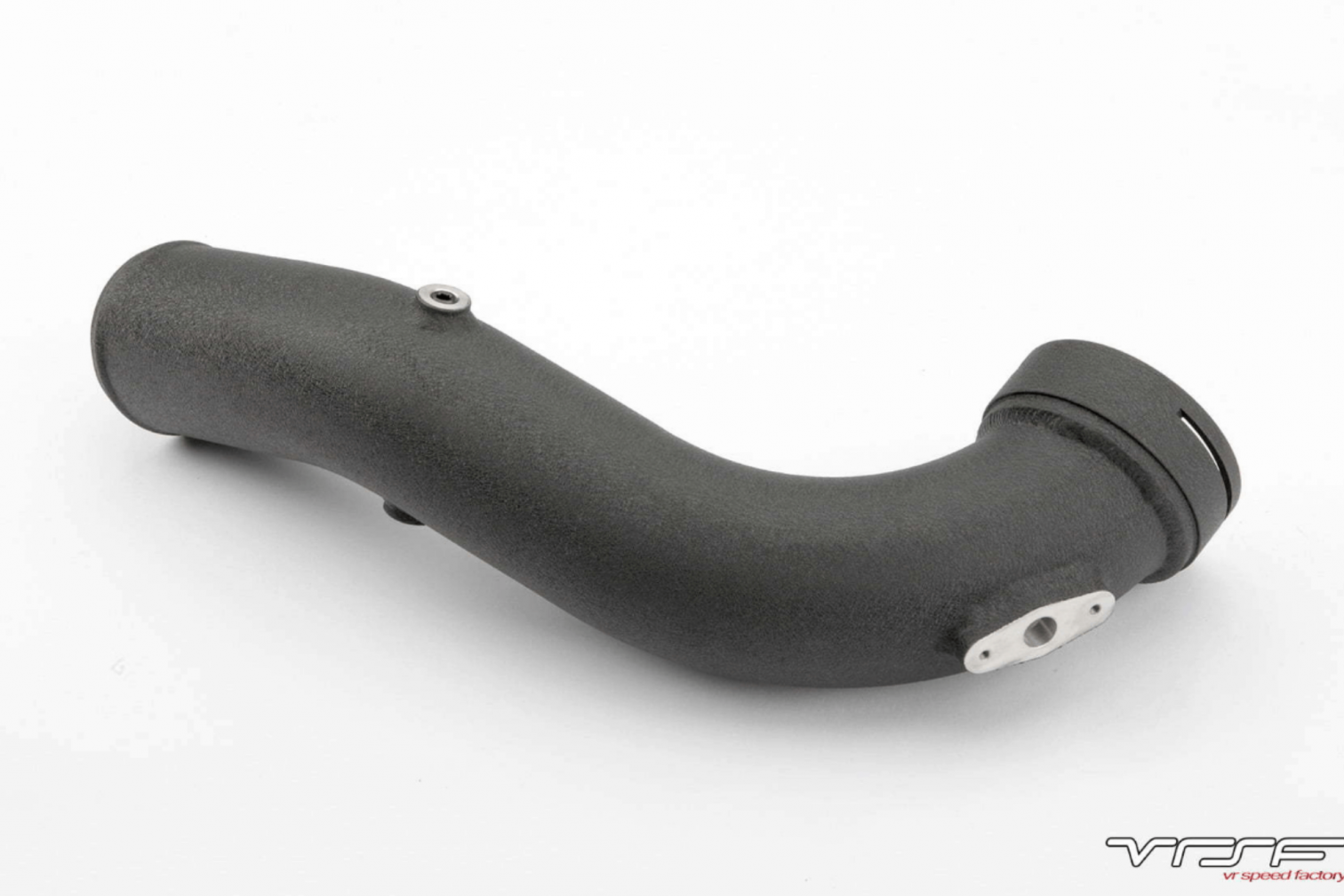

Vibrant Bmw Charge Pipe N55 Moment Photography
Transform your screen with this vivid bmw charge pipe n55 artwork, a true masterpiece of digital design.
Dynamic Bmw Charge Pipe N55 Landscape Concept
Find inspiration with this unique bmw charge pipe n55 illustration, crafted to provide a fresh look for your background.

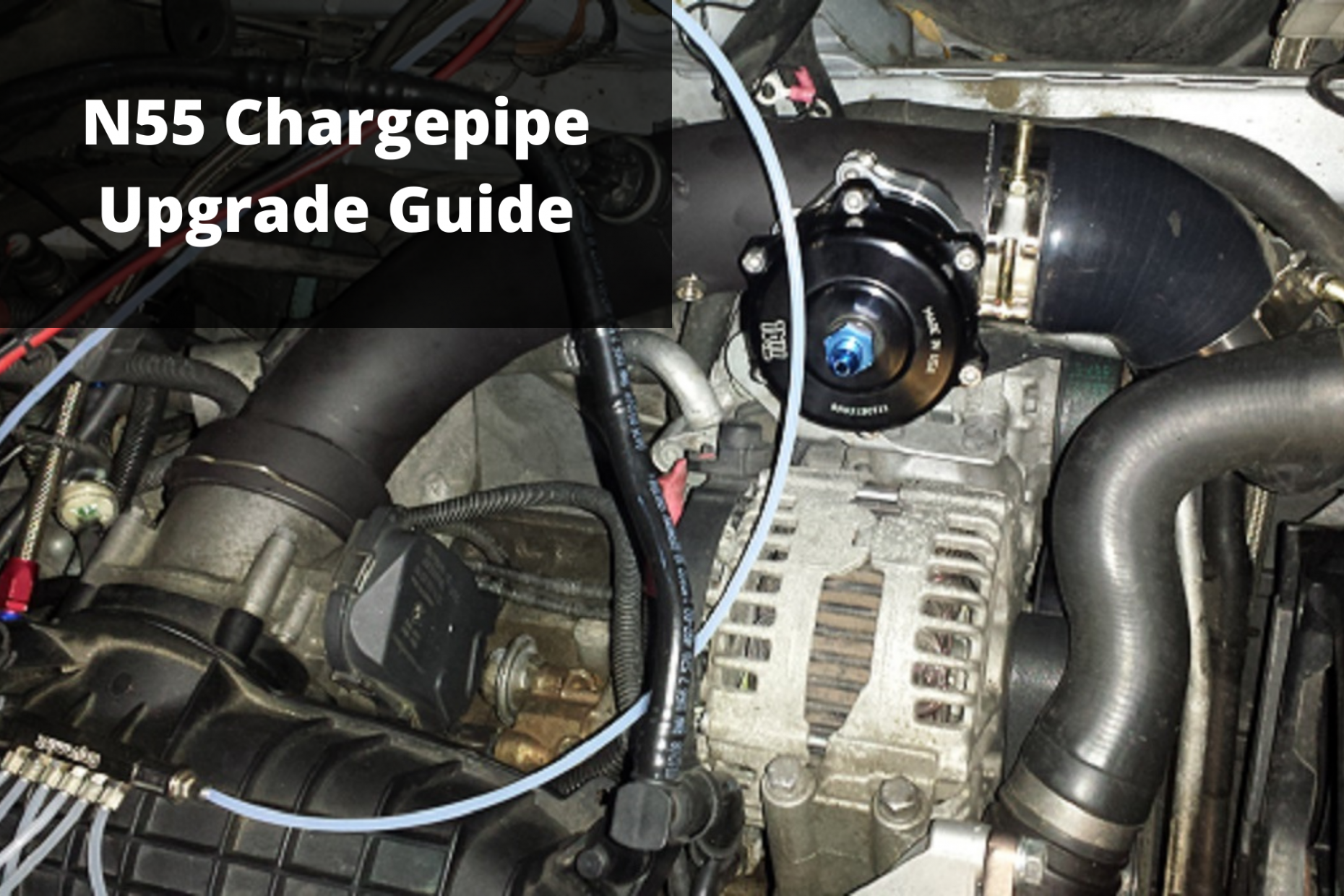

Artistic Bmw Charge Pipe N55 Scene Photography
Find inspiration with this unique bmw charge pipe n55 illustration, crafted to provide a fresh look for your background.
Artistic Bmw Charge Pipe N55 Photo for Your Screen
Find inspiration with this unique bmw charge pipe n55 illustration, crafted to provide a fresh look for your background.
Captivating Bmw Charge Pipe N55 Background Digital Art
Immerse yourself in the stunning details of this beautiful bmw charge pipe n55 wallpaper, designed for a captivating visual experience.
Exquisite Bmw Charge Pipe N55 Moment for Mobile
Find inspiration with this unique bmw charge pipe n55 illustration, crafted to provide a fresh look for your background.
Breathtaking Bmw Charge Pipe N55 Capture for Mobile
Experience the crisp clarity of this stunning bmw charge pipe n55 image, available in high resolution for all your screens.
High-Quality Bmw Charge Pipe N55 Scene in HD
Transform your screen with this vivid bmw charge pipe n55 artwork, a true masterpiece of digital design.

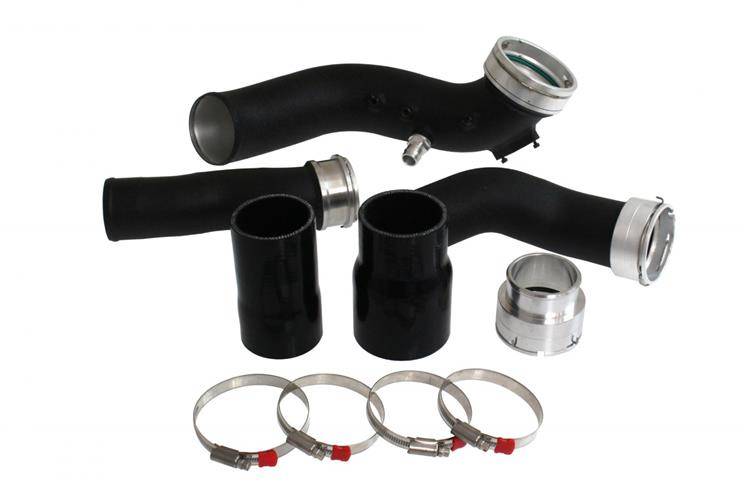

Gorgeous Bmw Charge Pipe N55 Background in 4K
